| 型号 | 齿轮 级数 | A | H1 | H2 | L | W | R |
| mm | mm | mm | mm | mm | mm | ||
| TA04-HB2-XXXX-XX | 4 | 64 | 12 | 23 | 88 | 22 | 10 |

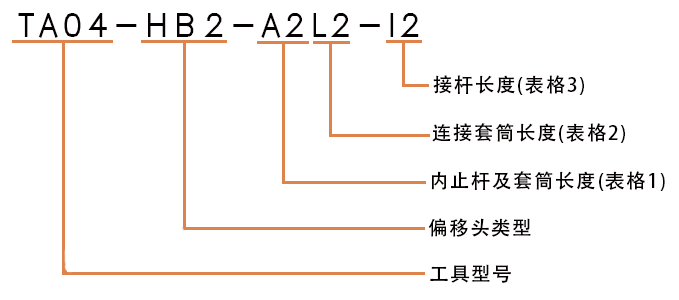

完整工具型号编码范例
表格1
| 7/32 | 1/4 | 9/32 | 5/16 | 11/32 | 3/8 | 7/16 | 1/2 | 9/16 | |
|---|---|---|---|---|---|---|---|---|---|
| 1/16 | A1 | A2 | A3 | A4 | A5 | ||||
| 5/64 | B1 | B2 | B3 | B4 | B5 | B6 | |||
| 3/32 | C4 | C5 | C6 | C7 | C8 | ||||
| 1/8 | D6 | D7 | D8 | D9 |
表格2
| 代码 | inch | mm |
|---|---|---|
| L1 | 1/4 | 6.4 |
| L2 | 1/2 | 12.7 |
| L4 | 1 | 25.4 |
| L5 | 1-1/2 | 38.1 |
| L6 | 2 | 50.8 |
| L7 | 2-1/2 | 63.5 |
| L8 | 3 | 76.2 |
表格3
| 代码 | inch | mm |
|---|---|---|
| X | - | - |
| I1 | 1 | 25 |
| I2 | 2 | 51 |
| I3 | 3 | 76 |
| I4 | 4 | 101 |
| I5 | 5 | 127 |
| I6 | 6 | 150 |
